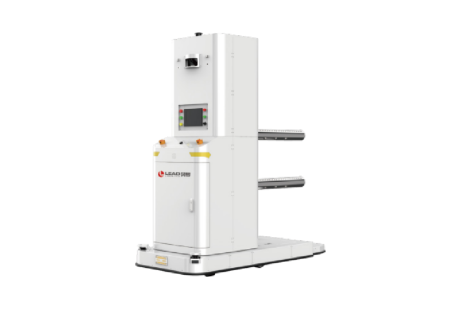

Cantilever AGV - Lead Intelligent

Application

Suitable for scenarios such as loading andunloading of hollow coiled materials, accessinggoods from the side or at speciﬁc angles byﬂexibly extending the cantilever with higheﬃciency and precision.

Feature

SLAM + QR code navigation

Omnidirectional chassis, 360 ° three-dimensional obstacle avoidance

Multiple coils can be unload simultaneously

Kernel parameters

Lifting height 650mm-1800mm, with up to 1200kg load

Double cantilever AGV supports dual tasks of picking & placing, and the cycle time is increased by 40%

Walking accuracy of ± 10 mm, end docking accuracy of ± 1 mm

Docked with shafts of 6 to10 inches
