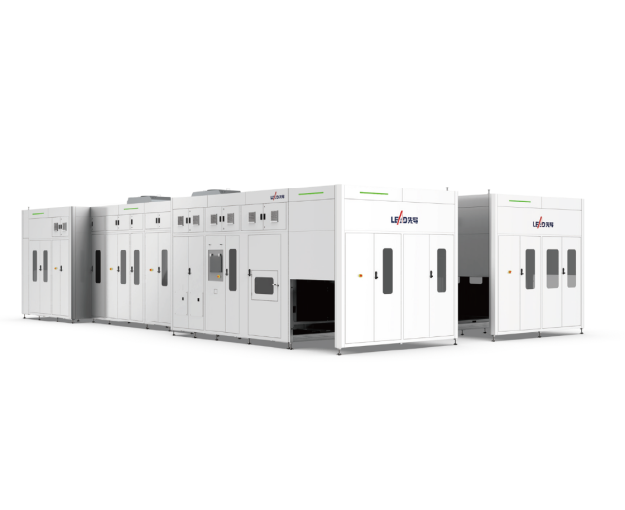

Cell Safety Inspection Machine

Product Overview

The machine checks the cell for its defects such as overhang, dog-ear, electrode folding, tab damage, tab reversed insertion etc., preventing NG products from flowing to the downstream process and enhancing the safety risk detection capability across the production line.

Features

Integrated with main surface contaminant inspection and electrode wrinkle inspection, effectively reducing safety risks caused by cell internal defects;

Incorporates TrueVoxel artifact correction and patented FOCUS image enhancement technologies to deliver superior image clarity.

Empowered by AI models, delivering high-accuracy inspection;

Supports fast changeover, easy maintenance, and rapid inspection;

Equipped with process feedforward, parameter-based classification, statistical distribution analysis, and CPK analysis.

Coordinates with cloud platform; Backed by million-level data volume;

Standard Configuration

Winded/Stacked cell inspection

Tab folding inspection

X-ray tube voltage: 150kV/160kV

2-corner overhang inspection

Main surface foreign object inspection

Optional Configuration

4-corner overhang inspection

Weighing

Thickness measurement

Tab folding inspection

Cell appearance inspection (dimension, tape, separator condition, etc.)

X-ray tube voltage: 130kV/160kV/200kV

Loading and unloading from the same or different side(s)

Fixture-free cell loading/Fixtured cell loading

Technical Parameters

Product Parameter

Item

Parameter

Machine efficiency

≥60PPM

Inspection accuracy

±0.06mm (using master)

Radiation leak

≤1uSv/h

Over-kill

≤0.3%

Miss-kill

Inspection item

Overhang, main surface foreign object, tab reversed insertion, etc.
