Product Overview

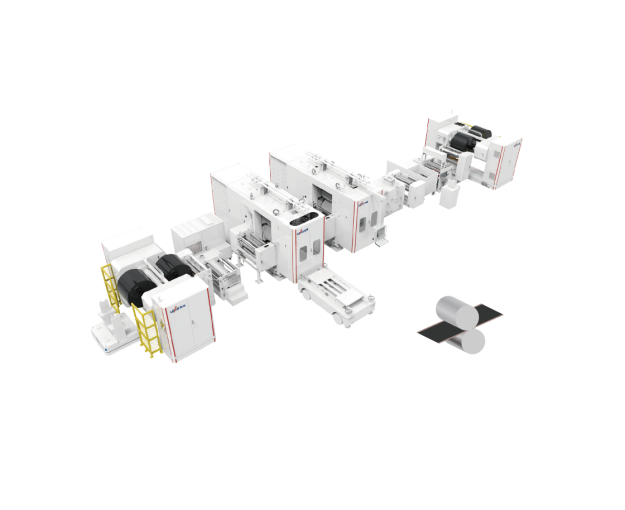

The calendering machine continuously compacts the coated electrodes using large-diameter rollers, tightly bonding the active material to the foil and compacting them to the targeted thickness and density.
Standard Configuration
Unwinding unit: Dual-shaft automatic roll change and splicing, pneumatic V-block, automatic A/B shaft centering, end material detection;
Front flattening unit: Main drive rollers, tension isolation, tension detection;
Calendering unit: Roller unit, bending cylinder correction component, hydraulic component, and roller gap control component;
Slitting unit: Correction component, slitter holder;
Rewinding unit: Differential shaft.
Optional Configuration
Servo-controlled cylinder: positioning repeatability at ±1μm. Switchable position/pressure control and real-time calendering force monitoring;
IHA tab heating;
Infrared heating;
Turret-type automatic roll change / single roll unwinding;
Calendering module: single roller hot calendering / single roller RT calendering / tandem roller
RT calendering, etc;
Tab flattening unit;
Roller surface ultrasonic cleaning;
Roller surface laser cleaning.
Technical Parameters
Product Parameter
Item
Parameter
Speed
Max 140m/min (continuous coating)
Incoming electrode width
200-1400mm
Unwinding/rewinding roll diameter
Max 1200mm
Linear pressure
Max 6.5t/cm
Roller gap adjustment accuracy
1μm
Tension control range
30-500N
Tension fluctuation
±1N
Stretching tension range
30-1200N
Tension fluctuation
±3N
