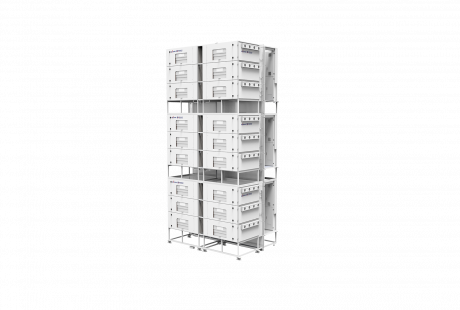

Self-Insulated Formation Integrated Machine
By embedding high-temperature insulation boards, the power cabinet is successfully integrated with the high-temperature pressing board module, solving customer pain points such as large footprint, long commissioning cycle, and low charging/discharging efficiency of the conventional split cabinets, achieving dual cost reduction for both equipment and factory building.
Technical Parameters
Item
Parameter
System charging efficiency
80%
System discharging efficiency
75%
Key Features
Fully automatic calibration design
Modular pull-out design for probe board, no power cables, easy for changeover and maintenance
Double improvements in equipment system efficiency and installation efficiency
Adopting high-precision temperature acquisition technology, excellent temperature uniformity of chambers
Abnormal detection (polarity/probe contact resistance/circuit contact resistance/environmental temperature/channel temperature/smoke detection/power-off protection)
Benefits of the Product
Space-saving
16% reduction in formation high-temperature room area；
15% reduction in equipment footprint；
40% reduction in maintenance platform area
Low energy consumption
11.8% reduction in equipment energy consumption
