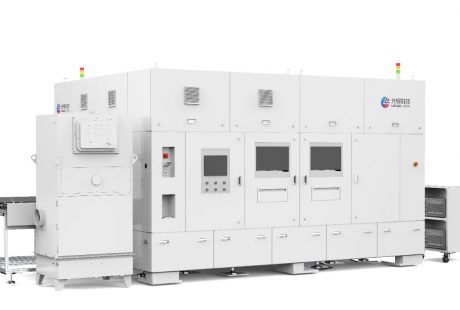

Perovskite Laser Patterning Equipment

The Perovskite laser patterning equipment is capable of covering products up to 1200mm by 2400mm in size for laser patterning. It is equipped with an independent optical system and advanced technology that allows for the simultaneous processing of 24 laser beams. The device also features a high-speed, precision air floating platform and a high-resolution CCD image positioning system, ensuring the accuracy of the processing. Additionally, it incorporates a specially developed dust extraction system, supports spot shaping technology, and possesses full independent intellectual property rights, ensuring the uniqueness and innovation of the equipment.

Warning: Trying to access array offset on value of type bool in /www/wwwroot/xiandao.com/en/wp-content/themes/digitalsilk/templates/flexible/product_overview.php on line 46

Key Features

Applicable product size: 2400*1200mm

Compatible with P1/P2/P3/P4 processing products

Adopt unique light splitting method, a single equipment with 12-24 beams of lights

Adapt to PSC/CIGS/CdTe and functional surface materials, with broad application scope

Automatic adjustment of cell spacing: customized laser application, optical path configuration for spot shaping

Benefits of the Product

High Capacity

➢Dual-core driven, a single machine equipped with 24-channel beams.
➢Etching speed 2.5 meters per second, acceleration 3G.
➢Single-machine capacity is able to reach over 500MW.

High Precision

➢Utilizes frictionless air-bearing motion axis, matched with high-precision cameras and other configurations to ensure equipment stability.
➢International standard high-performance stable lasers.
➢MTBF:≥720h
➢MTTR:≤4h

High Stability

➢Line positioning accuracy: ≤±5μm
➢Sub-cell width accuracy: ≤±5μm
➢Dead area can be reduced to below 150μm
