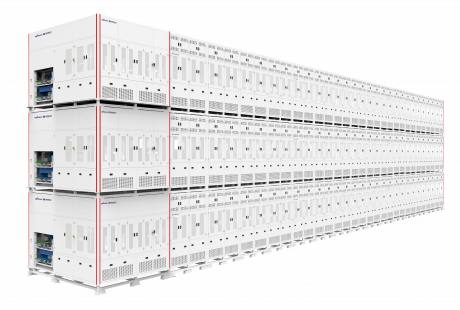

Horizontal Pressing Formation Machine for Pouch Cell
Through the manipulator of loading and unloading mechanism, the cells are taken out from the tray and placed into the loading fixture, then gripped by the overhead crane manipulator and put into the fixture for processing. After completion, the cells are placed back into the tray by the loading and unloading manipulator. The equipment can automatically transfer the cells and complete the process, effectively improving overall efficiency.
Technical Parameters
Item
Parameter
Precision of Pressure Control
±15KG(pressure within 100~1000KG);±1.5%RD(pressure≥1000KG)
Single-channel Temperature Uniformity
±2°C
Key Features
Single-layer or multi-layer stackable design, space saving and high utilization
Wide compatibility range, modularized design, easy to changeover
The power module is installed inside or outside the cabinet's side
Benefits of the Product
High efficiency
The efficiency of a single machine can reach 17ppm
Space-saving
The equipment can be stacked up to 5 layers, making full use of vertical space
High pressure uniformity
Compatible with cell thicknesses of 3-15mm without the need for changeover
