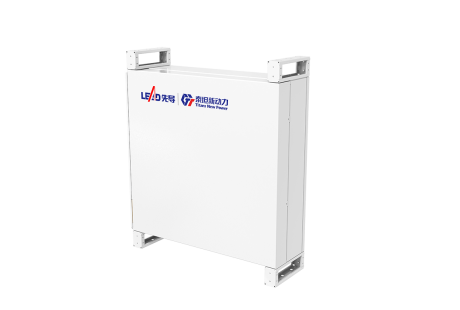

Grid-Side Energy Storage PCS Solutions

Targeted improvement for regional power grid defects, insufficient peak power supply, high electricity costs, etc., effectively solving pain points such as difficult expansion, high investment in expansion, and long cycle time, while utilizing peak-valley electricity price mechanism to achieve peak-valley arbitrage, demand management, and dynamic expansion.

DC Side Parameters

Item
Parameter
Product Model

TT-215M-H-0

Maximum DC Power

215kW (Maximum DC power discharged to the grid)

Maximum DC Current

237A(700V Rated)

DC Voltage Range (full load)

1000~1500Vdc

DC Dynamic Response (fluctuation amplitude)

<10%

AC Side Parameters

Item
Parameter
Rated Gnid-connected Voltage

690Vac(+15%) (The scope of protection can be set according to requirements)

Wiring Method

3P/3W

Frequeny

50/60Hz(-5~+5) (The scope of protection can be set according to requirements)

AC Rated Power

215kW

Maximumi AC Power

237kW

Power Factor Adjustable Range

-1~+1

Key Features

High efficiency and energy saving: Can store energy converted from electricity and switch between grid-connected and off-grid modes: In grid-connected mode, it has charging and discharging functions; in off-grid mode, it can serve as the main power source for microgrids, providing voltage and frequency control
High reliability: Adopting advanced control technology and protection measures to ensure system stability and reliability, reducing failure rate
High flexibility: Can be flexibly configured according to different application scenarios and needs to meet different energy storage requirements
High safety: Multiple protection measures are adopted to effectively prevent safety issues such as overcharging, overdischarging, and short circuits

Benefits of the Product

High accuracy

Average System Efficiency：99%

Low current harmonic distortion

Current harmonic distortion can be controlled within 3%

Short charging/discharging switching time

Minimum charging/discharging switching time can be as low as 10ms
